The Only Manufacturer of Both Elevator Controller and PM Traction Machine in China!

Elevator Belt Machine

  • Elevator Belt Machine
  • Elevator Belt Machine
  • Elevator Belt Machine
  • Elevator Belt Machine
  • Elevator Belt Machine

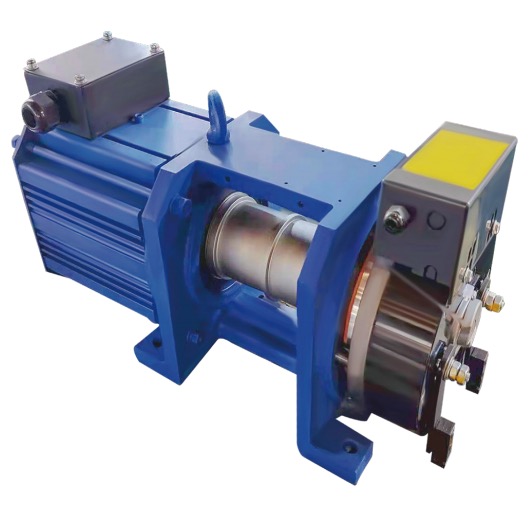

Elevator Belt Machine
  • Bluelight
  • China
  • 15 days
  • 80000 units / year

1. Double support structure ,reliable structure, better performance of villa elevator motor
2. Configured with shaft brake of low noise and compact structure
3. Use self-sealed bearings, maintenance free
4. Electromagnetic structure optimization ,smooth running and low noise

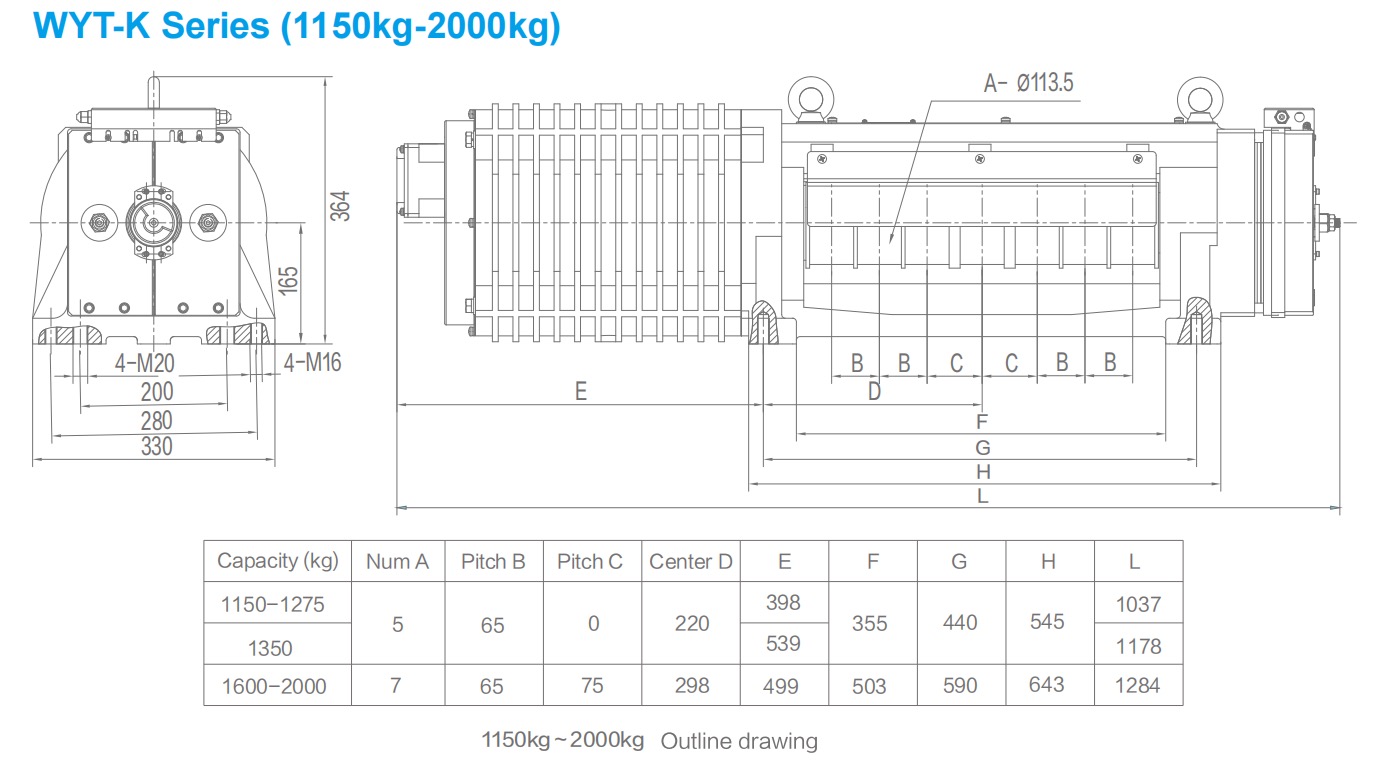

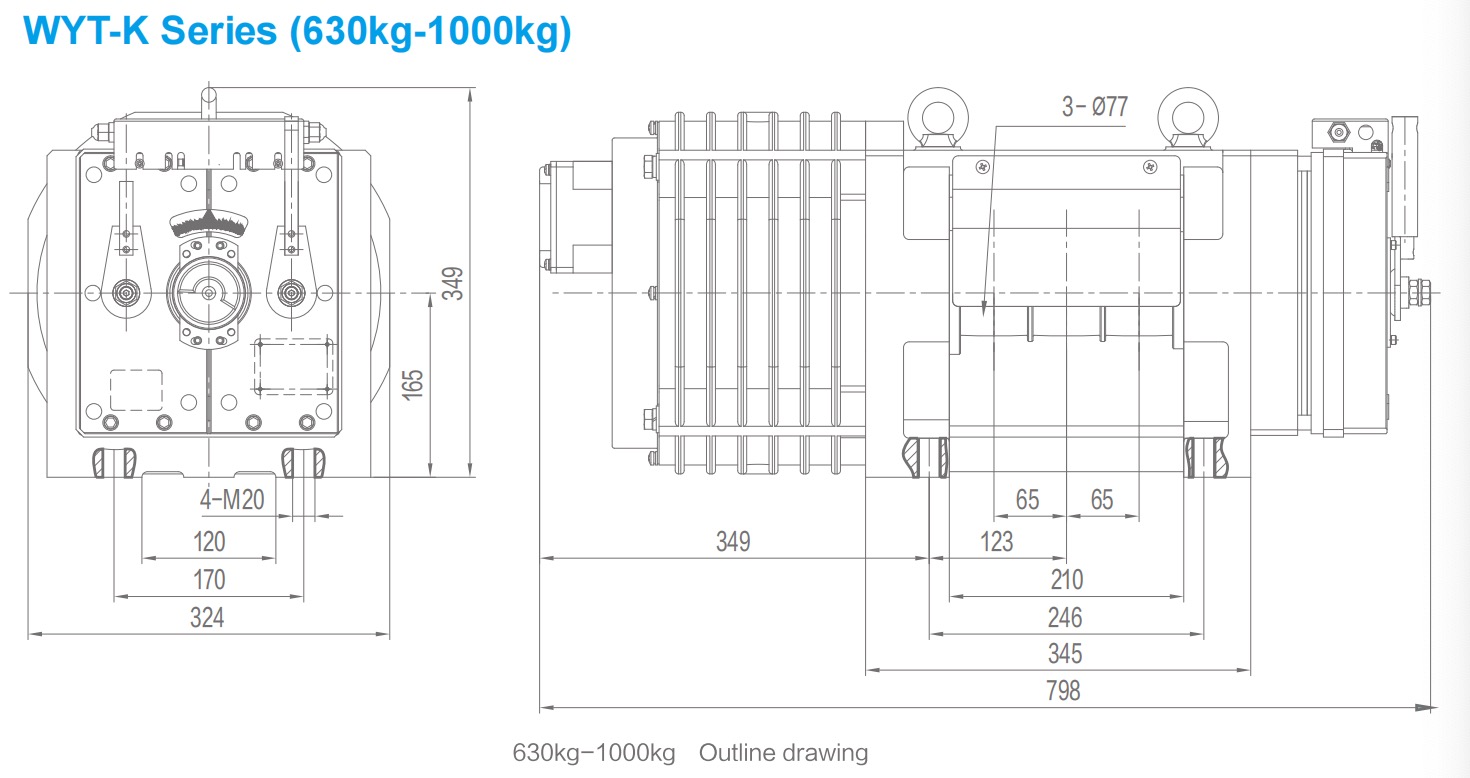

WYT-K/F Belt Machine series

Model: WYT-K Commercial Belt machine version


Due to increase needs of Belt motor, Bluelight group develop WYT-K series belt motor. The belt motor can work with Bluelight belt (STD43)to achieve best lift comfort level with minimum operation noise. This series machine has small size suitable for MRL design and easy maintenance.

belt machine


belt motor


villa elevator motor

belt machine


Features

  • Belt machine is made of aluminum alloy material, with good heat dissipation, small size and light weight;

  • Belt machine configured with shaft brake of low noise and compact structure;

  • Belt machine adopt two blance full sealed bears, free maintain;

  • Belt machine have smooth running, excellent performance at low speed:

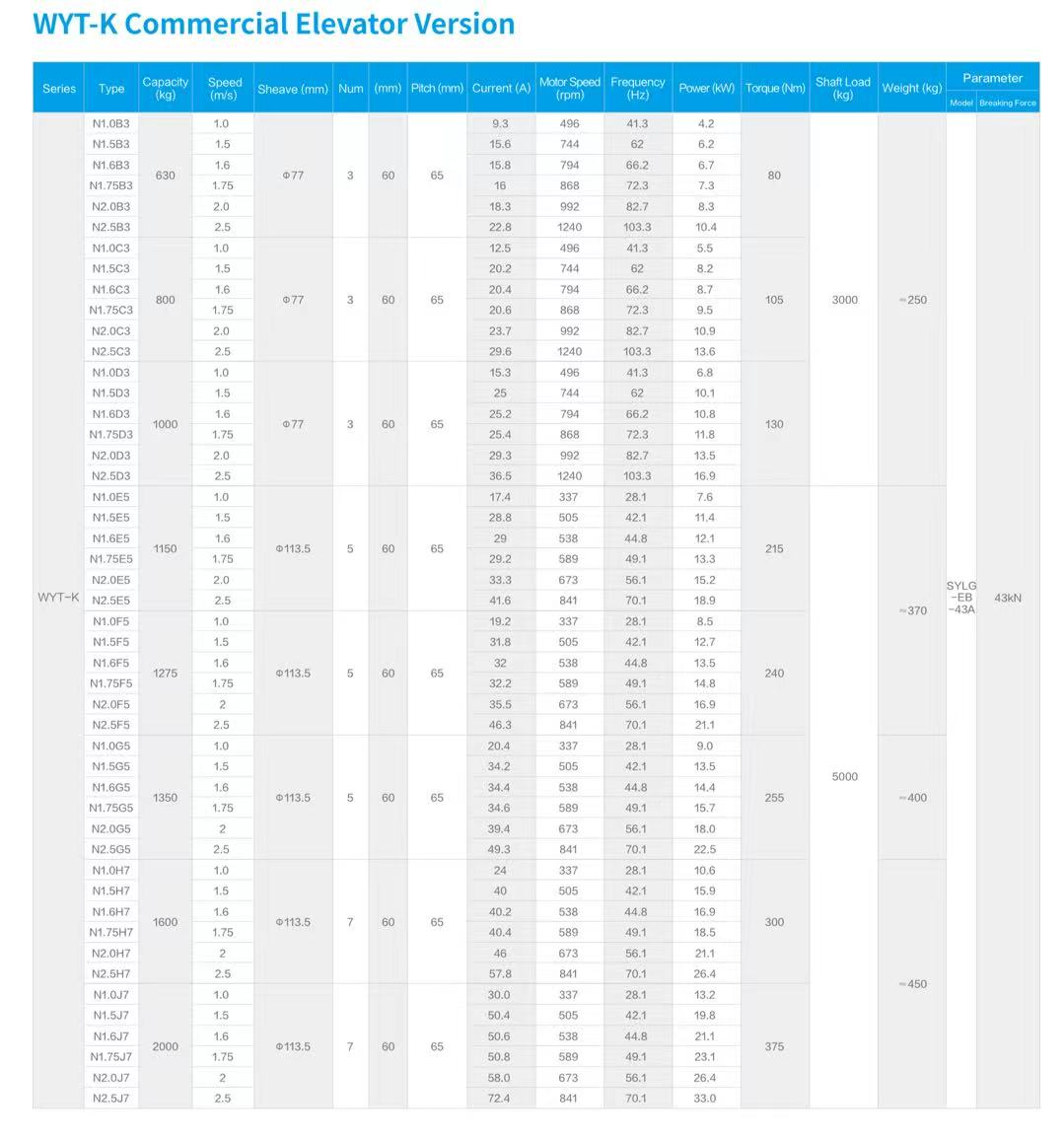

Specifications



Model: WYT-K Belt machine

Parameter of Traction Machine

Brake Parameter

 Voltage

AC380V

Brake Model

BLS

Roping

2:1

Ins. Class

F

Wrap

Single

Voltage

DC110V

Capacity

630kg~2000kg

Current

1.5A×2

Speed

1.0m/s~2.5m/s



Protection Grade

IP41



Ins. Class

F



Traction machine pole

10



Starts per hour

240



Rating

S5-40%

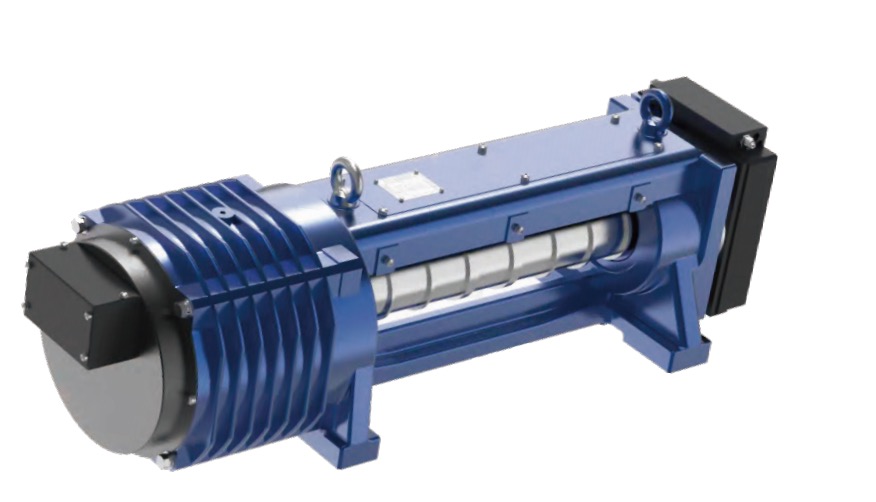

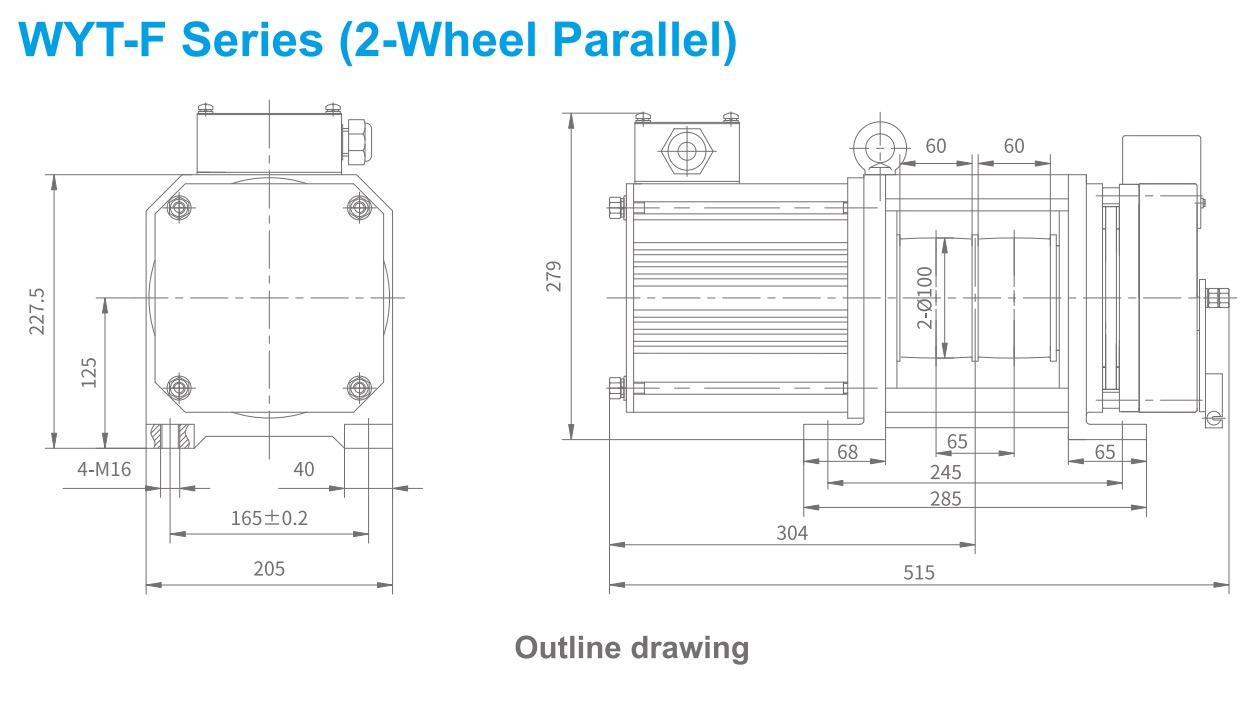

Model:WYT-F Home Belt machine Version

belt motor

Due to increse needs of home (belt villa) elevator ,Bluelight group develop WYT-F series belt motor ,the belt motor can work with Bluelight belt (43KN) to achieve best lift comfort level with minimum operation noise,This series belt motor has small size suitable for MRL design and easy maintenance.

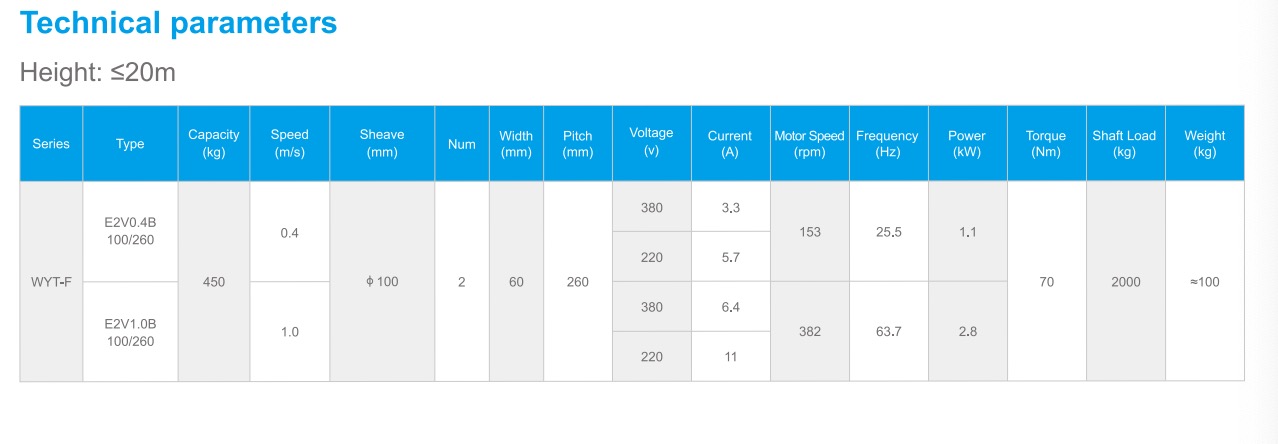

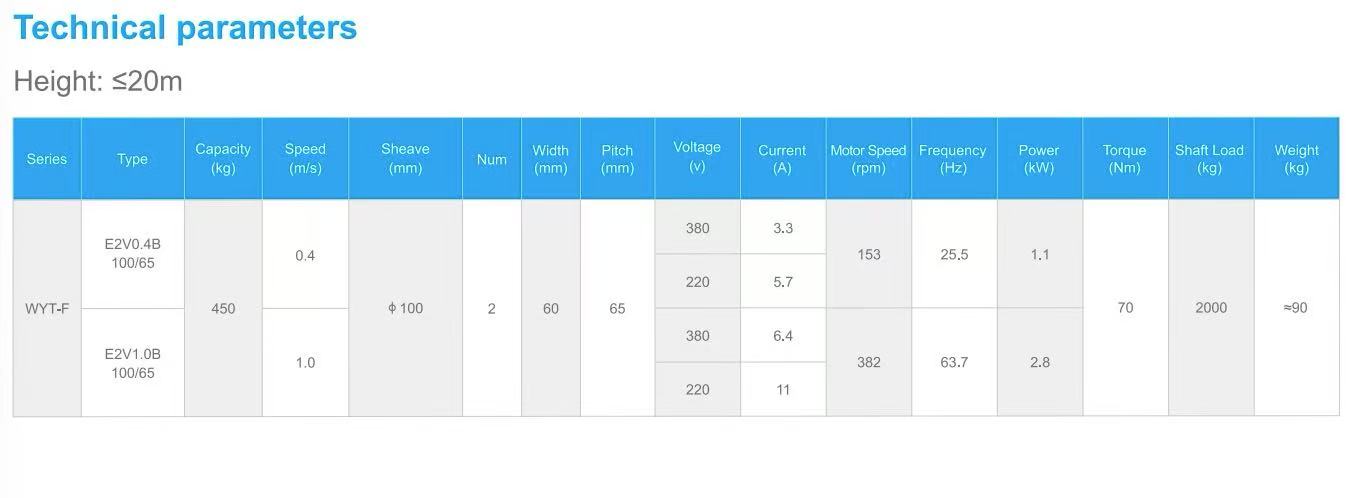

Model: WYT-F Belt motor
Parameter of Belt motor
VoltageAC380V/AC220V
Roping
2:1
WrapSingle
Capacity450kg
Wheel DiameterΦ100
Speed0.4m/s~1.0m/s
Protection GradeIP41
Ins.Class F
Traction machine pole20
stars perhour
150
RatingS5~25%


Features

  • Villa elevator motor is made of aluminum alloy material ,with good heat dissipation,small size and light weight

  • Configured with shaft brake of low noise and compact structure of our villa elevator motor

  • Villa elevator motor adopt two balance full sealed bears , free maintain

  • Villa elevator motor have smooth running,excellent performance at low speed

  • Our belt machine can work with Blurlight belt to achieve best lift comfort level with minium operation noise

villa elevator motor

belt machine

belt motor

villa elevator motor

More details,please download Bluelight catalogue.


Bluelight Partners


belt machine


Other products you would be interested (Please check "Product" to find more details)


belt motor


Bluelight Advantages


  • Bluelight was founded in 1989, a technology company with the highest technical strength and strong team with more than 30 national patents.

  • We are the only manufacturer in China to produce control systems and PM traction machine. belt motor is our features our belt motor can work with Blurlight belt to achieve best lift comfort level with minium operation noise

  • Bluelight has developed the first PM Traction Machine in China. In 2006 we established a joint company with industry giant OTIS elevator. Bluelight products have OTIS quality, strict quality control, and 100% inspection before delivery. to compared with the same industry, Bluelight PM traction machine has higher material grade, higher quality materials and more strict inspection.we have professional team with more than 20 years of export trade experience provides the most professional guidance and advice.
