BLM Flameproof High Efficiency Permanent Magnet Direct Drive Motor

  • BLM Flameproof High Efficiency Permanent Magnet Direct Drive Motor
  • BLM Flameproof High Efficiency Permanent Magnet Direct Drive Motor
  • BLM Flameproof High Efficiency Permanent Magnet Direct Drive Motor
  • BLM Flameproof High Efficiency Permanent Magnet Direct Drive Motor
BLM Flameproof High Efficiency Permanent Magnet Direct Drive Motor
  • Bluelight
  • China
  • 80000 units / year

1.Efficient and energy-saving
2.High standing torque,using vector control tecchnology,there is no impact on the power grid and ball mill during starting
3.The system can achieve variable frequency speed regulation o ensure that the ball mill operates at its optimal state
4.The permanent magnet synchronous motor intermediate links such as reducer and mechianical soft start device have been eliminated,and the electric motor is maintenance free
5.Reduced volume and easy instaillation

General Purpose Motor


Model: BLM Flameproof Motor Series


permanent magnet synchronous motor


general purpose motor

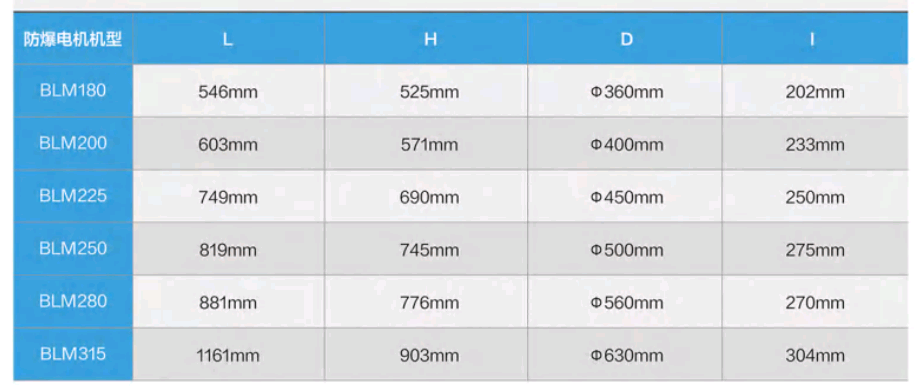

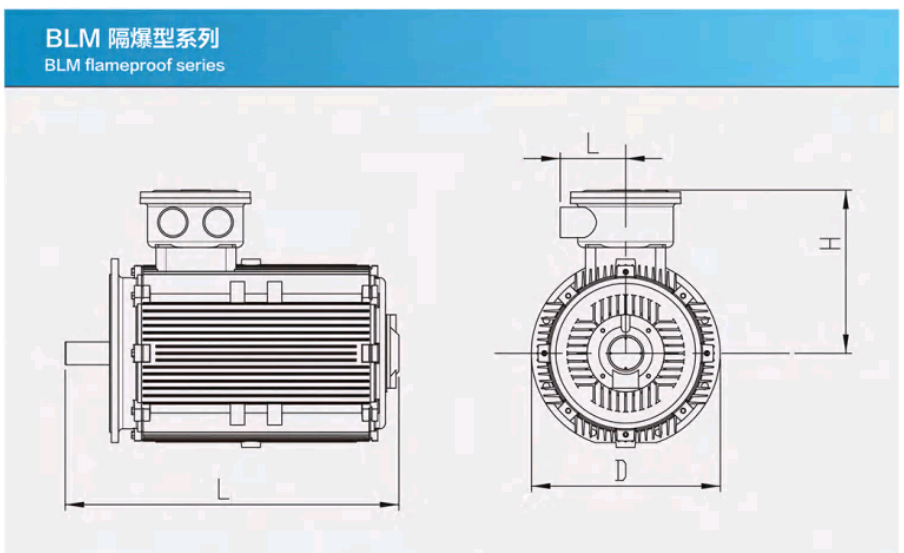

Dimensions

flame proof motor


Features

  • Flame proof motor with high torque on low speed.

  • Flame proof motor have explosion and flame proof.

  • Flame proof motor  have high over load capability.

  • Flame proof motor Maintenance free.

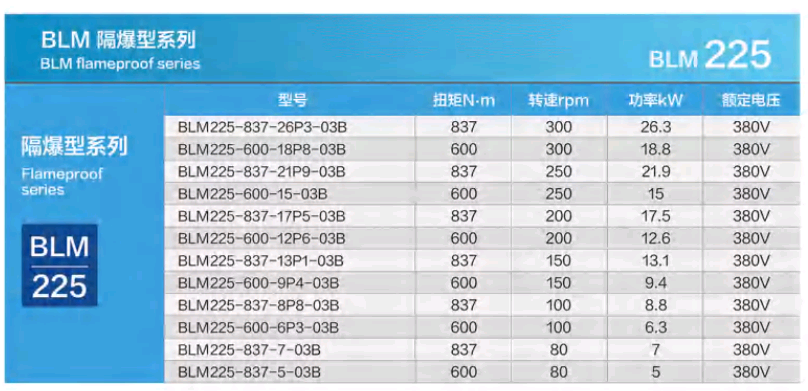

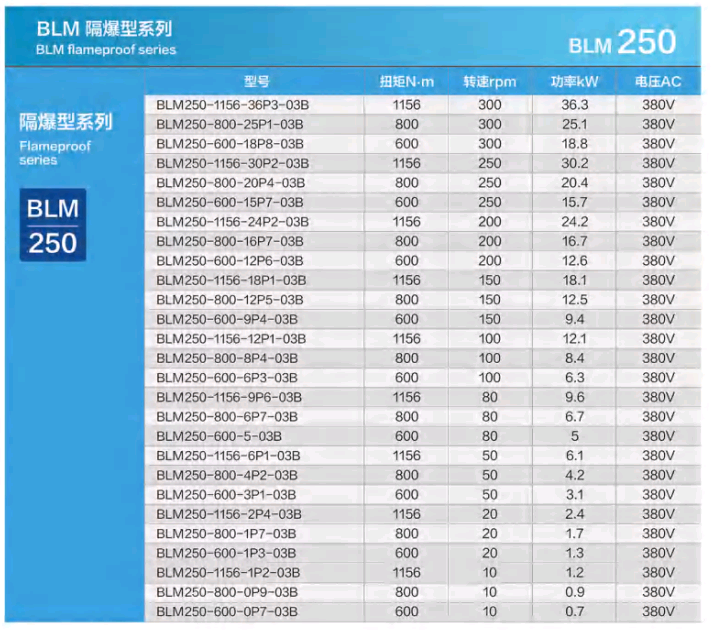

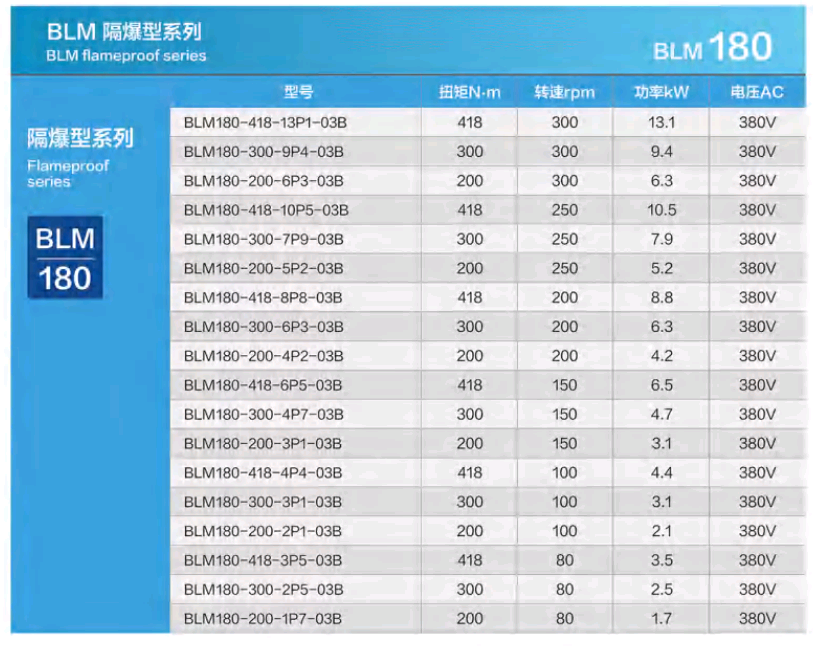

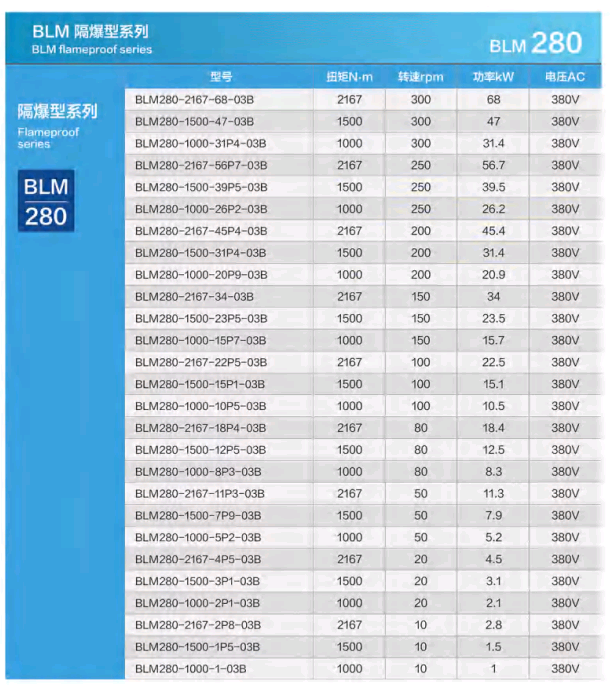

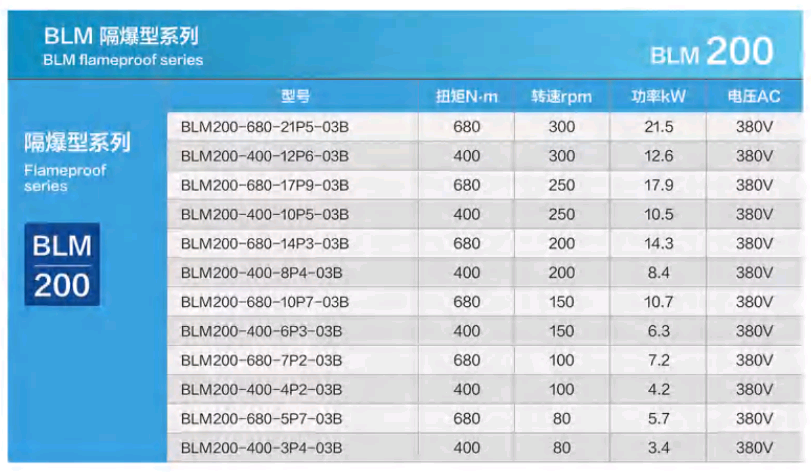

Specifications


General Flame Proof Motor Parameters
Working Voltage380V
Power Level1 ~ 146kW
Rated Torque Range200 ~ 4700Nm
Rated Speed10 ~ 300rpm
Insulation Grade

F

Vibration LevelR (vibration reduce) S options
Noise Level≤75db(A)
Dynamic Balance LevelG=2.5
Cooling MethodNature cooling
Feedback ComponentsRotary encoder/optical encoder/sine cosine encoder



Working Environment

Altitude 1000m and under
Ambient temperature -15℃ ~ +40℃
Temperature rise to under 95℃


More details, please download Bluelight catalogue.


Product Introduction

Bluelight specializes in R&D and manufacture of permanent magnet synchronous motors, and has obtained more than 30 independent intellectual property rights. The products are involving machine tools, mining machinery, oil fields, medical and food equipment, automatic injection molding and new energy industries,general purpose motor Among them, Bluelight have made breakthrough in direct drive technology of high-torque on low-speed applications. The output torque covers 10,000Nm. Compared with the traditional flame proof motor+ reducer drive technology, it can save 15%-40% of electricity.Cancel the speed reduction mechanism, improve system efficiency, simplify the drive system, reduce the fault points of the drive system, and achieve true maintenance - free operation.Save space. The weight of the permanent magnet synchronous motor is much lower than that of the original drive structure, reducing the weight load of the cooling tower steel structure. It can be fully customized according to the on - site environment.





Bluelight Partners


permanent magnet synchronous motor


Other products you would be interested (Please check "Product" to find more details)


general purpose motor


Bluelight Advantages

  • Bluelight Shenyang motor was founded in 1989.focusing on the research and producttion of permanent magnet motor ofr 30 years ,

  • Member of National Permanent Magnet Motor Association,National high-tech enterprise and general purpose motor

  • The company was founded in 1989 by three young master taechers from Shenyang University of Technology,the main products are: specializing in the research and development, production, maintenance and testing of permanent magnet motors.

  • The company has established r&d and production bases in Liaoning, Zhejiang, Guangdong and other places

  • Products are used in petroleum, chemical, electric power, steel, mining, construction industries and main engine factories. general purpose motor.

  • General purpose motor have high efficiency,free maintenance high torque on low speed.
