WYT-R Rail Mount Series PM Gearless Traction Machine
BLUELIGHT GROUP -Drive The Future
Next-Generation Traction Solution for Rail Mount Applications
Overview
Core Advantages
Rail-Mount Optimized Design: Tailor-made for rail mount installations, ensuring seamless adaptability and simplified mounting procedures.
Superior Heat Dissipation: Advanced structural design elevates heat dissipation efficiency, guaranteeing stable long-term operation even under continuous workloads.
High-Performance Outer Rotor Structure: Optimized electromagnetic configuration enables ultra-smooth low-speed operation and exceptional overload capacity, adapting to complex working conditions.
Reliable Brake System: Equipped with a block-type armless brake, offering rapid response times and robust reliability for maximum operational safety.
Technical Specifications by Variant

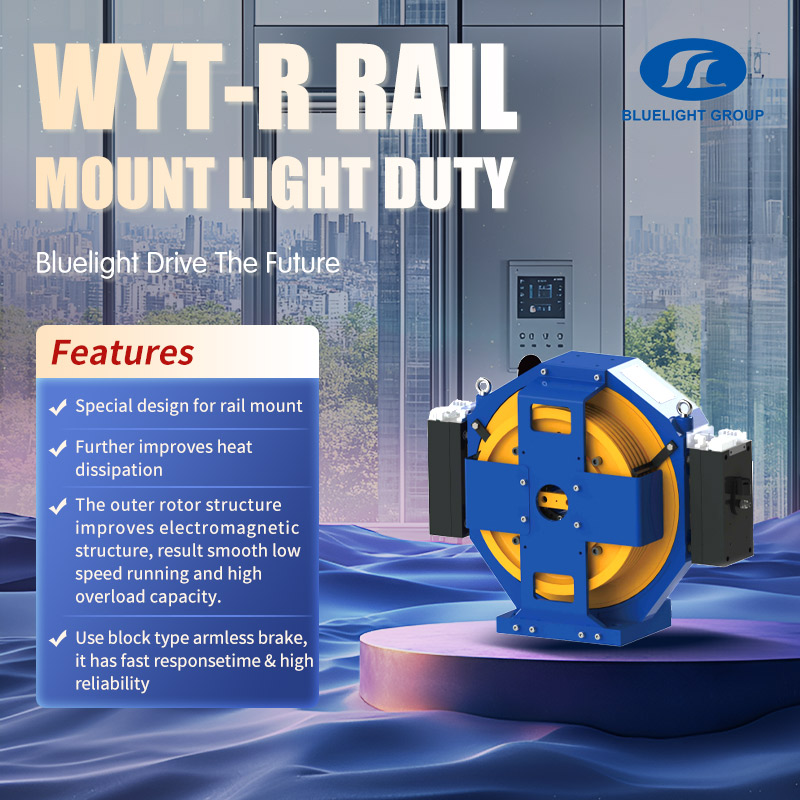

WYT-R Rail Mount Light Duty
The Light Duty variant, upgraded and redesigned in 2026, retains the series’ core advantages while optimizing performance parameters to meet evolving market needs.
| Parameter | Specification |
| Rated Voltage | AC 380V |
| Roping Ratio | 2:1 |
| Rope Wrapping Type | Single-layer |
| Rated Load Capacity | 450kg ~ 800kg |
| Operating Speed | 1.0m/s ~ 2.0m/s |
| Protection Grade (IP) | IP41 |
| Insulation Class | Class F |
| Traction Machine Poles | 30 Poles |
| Starts Per Hour | 240 Cycles |
| Duty Cycle | S5-40% |
WYT-R Rail Mount Standard Version
Engineered to cater to higher load requirements, the Standard Version has been upgraded with an expanded load capacity range, broadening its application scope across diverse scenarios.
| Parameter | Specification |
| Rated Voltage | AC 380V |
| Roping Ratio | 2:1 |
| Rope Wrapping Type | Single-layer |
| Rated Load Capacity | 630kg ~ 1275kg |
| Operating Speed | 1.0m/s ~ 2.0m/s |
| Protection Grade (IP) | IP41 |
| Insulation Class | Class F |
| Traction Machine Poles | 30 Poles |
| Starts Per Hour | 240 Cycles |
| Duty Cycle | S5-40% |
